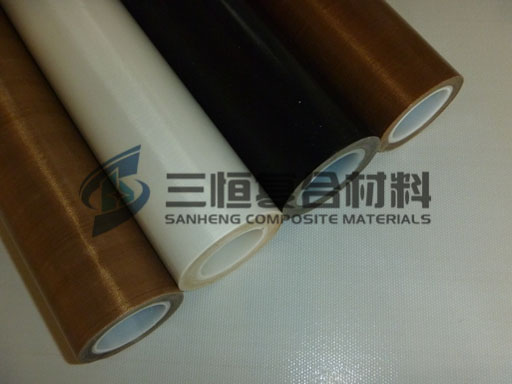

teflon tape
Teflon tape is made of high-quality PTFE PTFE fiberglass high-temperature cloth or PTFE PTFE PTFE turning film as the substrate, with one side treated with special treatment and then coated with silicone adhesive.
The main characteristics of Teflon tape are:
● Climate resistance - continuous operation from low temperature to high temperature within the range of -70 ℃ to 230 ℃ Celsius
Non adhesive - almost all adhesives such as resins, coatings, etc. can be easily removed
Drug resistance - unaffected by the vast majority of chemicals and solvents
Mechanical characteristics - Dimensional stability (elongation coefficient less than 5% under heated conditions), low friction coefficient (0.05-0.1)
● Electrical characteristics - extremely superior insulation, anti UV, infrared, and high-frequency interference
Application scope of PTFE tape:
The heat sealing part of the wrapping and sealing machine
● Friction surfaces of enclosed feeding hopper and guide rail
● Protection against insulation and fire protection measures for electrical wiring and cables
● Cover the surface of the sizing machine drum and resin processing precision roller
● Covering non adhesive and parts that require smoothness maintenance
● As an inner lining for equipment accessories
● Used for thermoplastic demolding
Technical parameters of PTFE tape:
A. PTFE PTFE PTFE fiberglass tape
款号 | 颜色 | 厚度 | 总厚度 | ******宽幅 | 粘附力 | 耐温 |
SHT008 | 棕色 | 0.08mm | 0.13mm | 1250mm | 2.2 N/cm | -70 - 230℃ |
SHT008B | 黑色 | 0.08mm | 0.13mm | 1250mm | 2.2 N/cm | -70 - 230℃ |
SHT008W | 白色 | 0.08mm | 0.13mm | 1250mm | 2.2 N/cm | -70 - 230℃ |
SHT013 | 棕色 | 0.13mm | 0.18mm | 1250mm | 2.8 N/cm | -70 - 230℃ |
SHT013B | 黑色 | 0.13mm | 0.18mm | 1250mm | 2.8 N/cm | -70 - 230℃ |
SHT013W | 白色 | 0.13mm | 0.18mm | 1250mm | 2.8 N/cm | -70 - 230℃ |
SHT018 | 棕色 | 0.18mm | 0.23mm | 1250mm | 4.8 N/cm | -70 - 230℃ |
SHT025 | 棕色 | 0.25mm | 0.28mm | 1250mm | 6.2 N/cm | -70 - 230℃ |
B. PTFE Teflon film tape
款号 | 颜色 | 厚度 | 总厚度 | ******宽幅 | 粘附力 | 耐温 |
SHT-SK005 | 灰色 | 0.05mm | 0.09mm | 1000mm | 2.0N/cm | -70 - 230℃ |
SHT-SK005B | 黑色 | 0.05mm | 0.09mm | 1000mm | 2.0N/cm | -70 - 230℃ |
SHT-SK008 | 灰色 | 0.08mm | 0.13mm | 1000mm | 2.5N/cm | -70 - 230℃ |
SHT-SK008B | 黑色 | 0.08mm | 0.13mm | 1000mm | 2.5N/cm | -70 - 230℃ |
SHT-SK013 | 灰色 | 0.13mm | 0.18mm | 1000mm | 2.5N/cm | -70 - 230℃ |
SHT-SK013B | 黑色 | 0.13mm | 0.18mm | 1000mm | 2.5N/cm | -70 - 230℃ |
SHT-SK020 | 灰色 | 0.25mm | 0.25mm | 1000mm | 4.4N/cm | -70 - 230℃ |
SHT-SK025 | 灰色 | 0.30mm | 0.30mm | 1000mm | 5.8N/cm | -70 - 230℃ |
If you need to consult the detailed parameters or special specifications of the above series of products, please inquire with our sales department.
