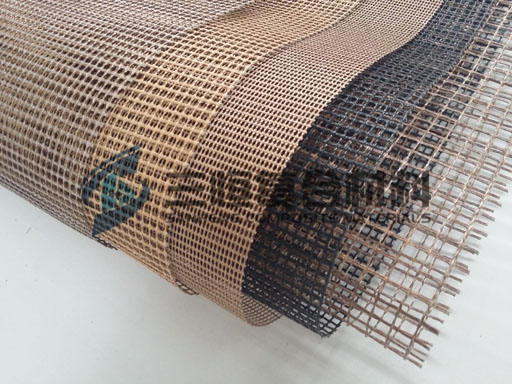

PTFE PTFE mesh drying room conveyor belt
The company uses high-quality glass fiber and Kevlar (aramid) as substrates to weave high-strength mesh fabric, which is then coated with PTFE (PTFE) resin with excellent properties to make the fabric of the PTFE mesh drying room conveyor belt. It is then processed into various specifications of breathable drying conveyor belts using unique production processes.
Main features:
● Climate resistance - continuous operation from low temperature to high temperature within the range of -70 ℃ to 260 ℃ Celsius. Through practical application, if left continuously at a high temperature of 250 ℃ for 200 days, not only will the strength not decrease, but the weight will also not decrease; After being placed at a high temperature of 350 ℃ for 120 hours, the weight only decreased by about 0.6%; It will not crack at -180 ℃ ultra-low temperature and maintain its original softness
Non adhesive - almost all adhesives such as resins, coatings, etc. can be easily removed
Drug resistance - unaffected by the vast majority of chemicals and solvents
Mechanical characteristics - Dimensional stability (elongation coefficient less than 5% under heated conditions), low friction coefficient (0.05-0.1)
● Electrical characteristics - extremely superior insulation, anti UV, infrared, and high-frequency interference
● Breathable characteristics - the air permeability of the conveyor belt reduces heat consumption and improves drying efficiency
Application scope:
Textile printing and dyeing - drying of bleaching and dyeing fabrics, drying of printing, drying of fabric shrinkage, drying of non-woven fabrics, and other mesh fiber conveyor belts
Screen printing - UV drying, plastic product screen printing drying, paper oil drying, mesh fiber conveyor belt
● Comprehensive items - high-frequency drying, freezing and thawing of various foods, baking, thermal shrinkage of packaged items, etc
● Other situations - In situations where hot air drying is required and heat processing transfer conditions are met, it is suitable to use mesh fiber conveyor belts
Technical parameters:
Item number | Grid size (mm*mm) | colour | material | thickness (mm) | ******wide | grammage (g/m²) | tensile strength(N/5cm) | |
经向 | 纬向 | |||||||
SHM051 | 0.5*1 | brown | glass fiber | 0.5 | 4000 | 420 | 2200 | 1500 |
SHM001 | 1*1 | brown | glass fiber | 0.5 | 4000 | 370 | 1600 | 1500 |
SHM001B | 1*1 | black | glass fiber | 0.5 | 4000 | 370 | 1600 | 1500 |
SHM225 | 2*2.5 | brown | glass fiber | 0.9 | 4000 | 600 | 2200 | 1500 |
SHM004 | 4*4 | brown | glass fiber | 1.0 | 4000 | 450 | 2100 | 1500 |
SHM004B | 4*4 | black | glass fiber | 1.0 | 4000 | 400 | 2100 | 1500 |
SHM044 | 4*4 | brown | glass fiber | 1.0 | 4000 | 500 | 2800 | 1580 |
SHM044B | 4*4 | black | glass fiber | 1.0 | 4000 | 550 | 2800 | 1500 |
SHM044K | 4*4 | brown | Kevlar fiberglass | 1.0 | 4000 | 600 | 3300 | 2800 |
SHM010 | 10*10 | brown | glass fiber | 1.2 | 4000 | 450 | 1100 | 1000 |
If you need to consult the detailed parameters or special specifications of the above series of products, please inquire with our sales department.
